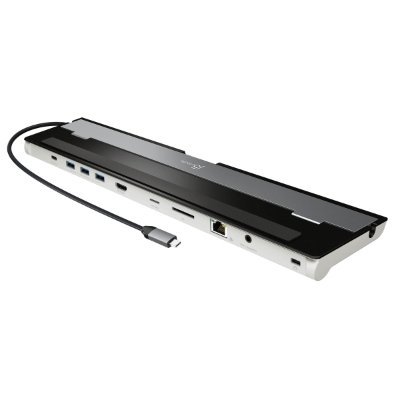

J5create JCD533 9-in-1 USB-C Stand Type Multi-Function Laptop Dock [Hong Kong Maintenance]

J5create JCD533 can instantly improve the efficiency of USB-C laptops and expand multiple functional ports (4K HDMI, wired network, microphone, card reader, USB-C PD charging, 3 USB 3.0 interfaces) to solve the problem of ultra-thin laptops To solve the problem of insufficient connection ports, it is thoughtfully equipped with a lock hole to prevent theft, and a cable outlet design on both sides, so you don’t have to worry about which side the laptop’s USB-C interface is. It is an excellent choice to buy a multi-functional expansion hub.

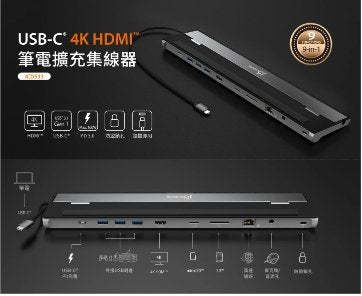

feature of product

1. Type-C (Power in) supports PD 3.0, maximum 100W pass-through
2. HDMI up to 4K @ 30Hz or 1080p @ 60Hz
3. 3x USB Type-A Gen1 (5Gbps)
4. Support SD / MicroSD 3.0 UHS-I 104 MB/s
5. 10/100/1000 Gigabit Ethernet
6. 3.5mm Combo Jack
7. Anti-theft keyhole
8. Windows & Mac Plug and Play
9. Made in Taiwan MIT

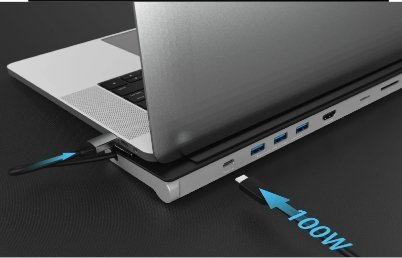

Support PD 100W Pass-Through charging

It can be connected to an external USB-C power supply up to PD 100W (need to be purchased separately). In addition to charging the laptop, it can also ensure that peripherals connected to the docking station have sufficient operating power.

Support PD 100W Pass-Through charging

It can be connected to an external USB-C power supply up to PD 100W (need to be purchased separately). In addition to charging the laptop, it can also ensure that peripherals connected to the docking station have sufficient operating power.

system requirement

• Support Microsoft Windows 10
• Supports macOS 10.11 or above
• The USB-C interface of the device must support DisplayPort Alternate Mode
• The USB-C interface of the device must support Power Delivery and can be powered on to the laptop

product specifications

Host interface

• USB Type-C Connector

port

• 1x HDMI Female (supports the highest resolution 4K @ 30Hz & 1080P @ 60Hz)
• 1x USB Type-C Power in (supports PD3.0/maximum output 100W)
• 1x Gigabit Ethernet (10/100/1000 high-speed transmission)
• 3x USB3.1 Type-A Gen1 (transmission rate 5Gbps)
• 1x SD 3.0/Micro SD 3.0 (transmission speed 104MB/s, can be read simultaneously)
• 1x 3.5mm microphone/speaker
• 1x Security Slot

power mode

• Bus-Powered or Self-Powered
• USB Type-C supports PD, up to 100W

Ethernet:

• Transfer Rate:
• 1000 Mbps (half duplex) / 1000 Mbps (full duplex)
• IEEE:
• IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes:

• Support Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet or Microsoft wakeup frame
• Support IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering

color

• silver black

Material

• Plastic case/aluminum cover

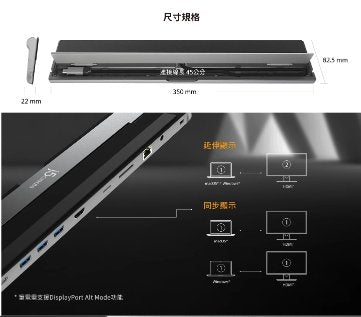

Product Size

• 350 (length) x 82.5 (width) x 22 (height) mm／Cable length 45cm

weight

• About 300 g

operating system

• Microsoft® Windows® 10
• macOS® 10.11 or above

Laptop/Tablet

• Macbook™ Pro 2016 or newer
• Surface Pro™ 7
• Surface Go™
• Surfacebook™ 2
